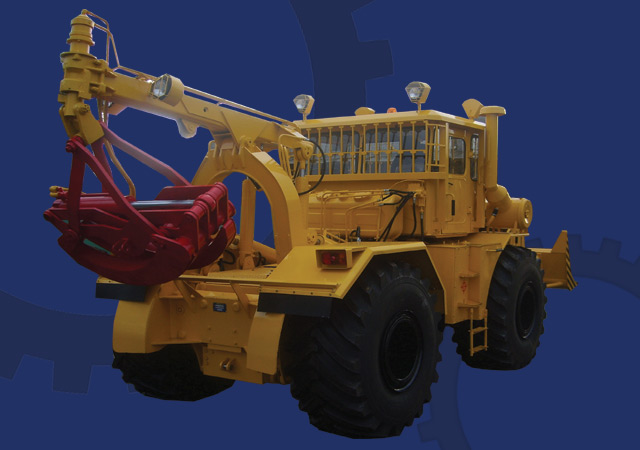

Skidder is made on the basis of tractor K-703B and it is intended for logs and fallen trees skidding and for piling. It is equipped with chokerless skidding equipment with pincer grab.
TECHNICAL CHARACTERISTICS
Engine make: YMZ-238NDZ
Engine power, kw/h.p.: 173 / 235
Speed, km/hour: from 0 to 30,2
Gear box: mechanical, multistage, with pinions of permanent-mesh, mechanical switching of conditions and a hydraulic control of the clutches ensure a gear change without breakage of a power flow within one mode.
Amount of transmissions: forward - 16, back - 8
The drive axle: single-reduction final drive is conical, interwheel differential is self-locking, final transmission is an epicyclic reducer
the back axle could be turned off.
Cabin: all-metal, two-seat, sealed, with noise and a heat insulation, with built-in safety cage, with adjustable thermal condition and ventilation.
Skidding equipment:
- Maximum volume of skidded logs package, m³: 6,5
- Maximal rotation angle of grapple in a horizontal plane: 250±10 degrees
- Maximal jaws opening, mm: 3300
Moldboard:
- Width, mm: 3000
- Height, mm: 600
- Height of moldboard lift, mm: 900
Outline dimensions (LBH), mm: 9500х3240х3580
Service weight, kg: 15000
On a base case of timber skidder the starting preheater (220V)of a cooling fluid with a circulator is installed. The additional equipment could be also installed.
